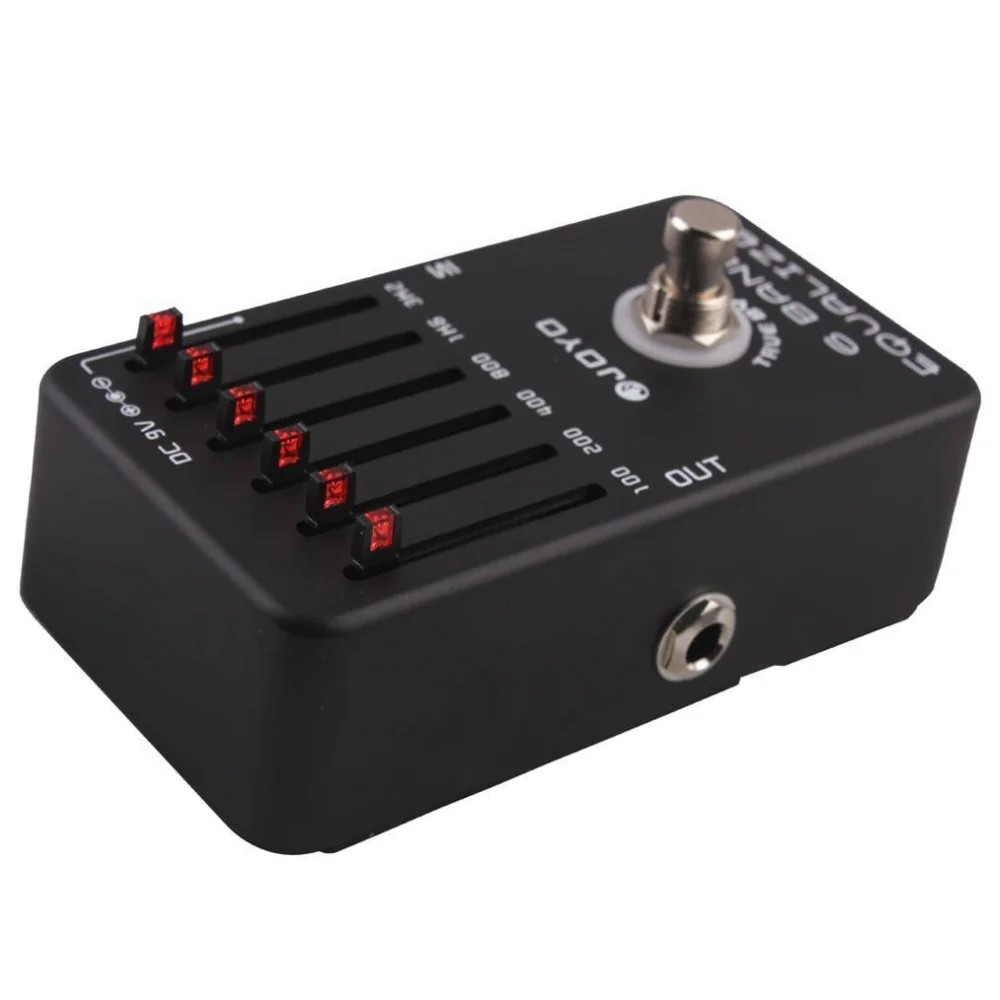

JOYO JF-11 6-Band EQ Guitar Effect Pedal
JOYO JF-11 6-Band EQ Guitar Effect Pedal
The JOYO JF-11 6-Band EQ is a versatile graphic equalizer guitar effect pedal designed to give players precise control over their tone across the frequency spectrum. By allowing targeted boost or cut at key frequency ranges, it helps refine your overall sound for live performance, studio recording, or detailed pedalboard tone shaping.
With six adjustable frequency bands and a wide ±18 dB boost/cut range per band, the JF-11 enables fine control over lows, mids, and highs—making it easy to add clarity, remove muddiness, or enhance presence in a mix. Built with true bypass switching and housed in a durable metal enclosure, it’s designed for reliable everyday use with electric guitar, bass, and other electric instruments.
Key Features
- 6-Band Graphic EQ: Adjustable frequency bands at 100 Hz, 200 Hz, 400 Hz, 800 Hz, 1.6 kHz, and 3.2 kHz.
- Wide Boost/Cut Range: ±18 dB per band for flexible and expressive tone shaping.
- True Bypass: Preserves your original signal path when the pedal is disengaged.
- Clear Visual Feedback: LED indicators and faders make settings easy to see and adjust.
- Durable Metal Housing: Built for consistent pedalboard and stage use.
- Multi-Instrument Use: Suitable for electric guitar, bass, and other electric instruments.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | JOYO JF-11 6-Band EQ |
| Type | Graphic EQ Guitar Effect Pedal |
| Frequency Bands | 100 Hz, 200 Hz, 400 Hz, 800 Hz, 1.6 kHz, 3.2 kHz |
| Boost / Cut Range | ±18 dB per band |
| Bypass | True Bypass |
| Power | 9V DC Adapter or 9V Battery |
| Running Current | Approx. 15 mA |
| Input Impedance | Approx. 500 kΩ |
| Output Impedance | Approx. 10 kΩ |
| Dimensions | Approx. 120 × 72 × 55 mm |
| Weight | Approx. 290 g |
Why Choose the JOYO JF-11?
- Precise Tone Control: Shape your sound across key frequencies for clarity and balance.
- Pedalboard-Friendly: Compact size with true bypass for seamless integration.
- Versatile Applications: Useful before distortion, after drives, or in effects loops.
- Reliable Build: Solid construction designed for regular use.
A Practical EQ Tool for Guitar and Bass
The JOYO JF-11 6-Band EQ is an essential utility pedal for players who want greater control over their tone. Whether you’re refining your sound for a live mix, recording session, or shaping your pedalboard signal chain, it provides clear, effective frequency adjustment in a simple and dependable format.
